X17 detector

Geometry, from the outside in.

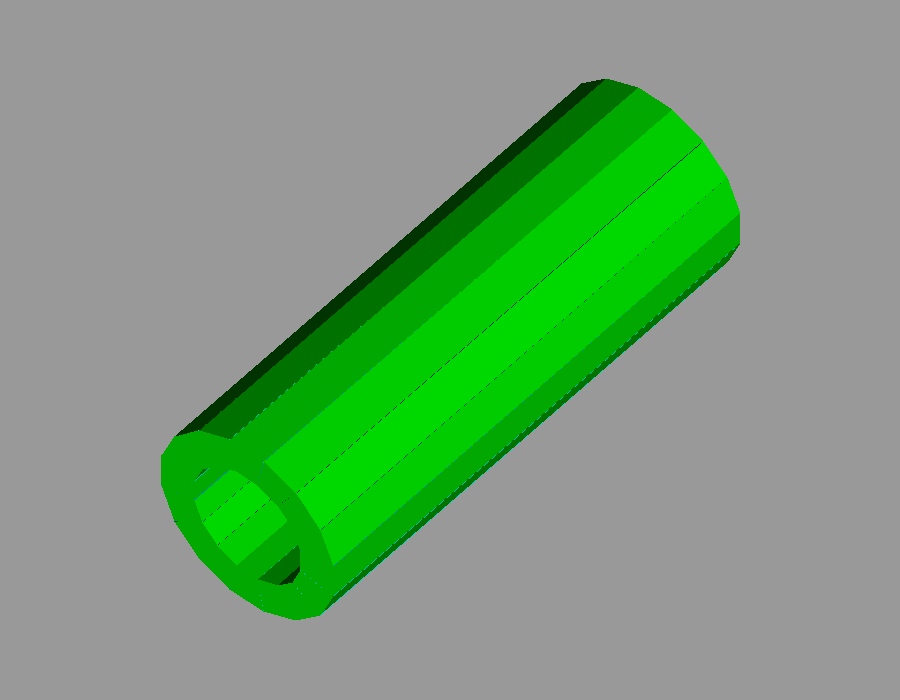

Green cylindrical PVC enclosure surrounding the detector. — Detector
The full assembly inside its PVC enclosure.

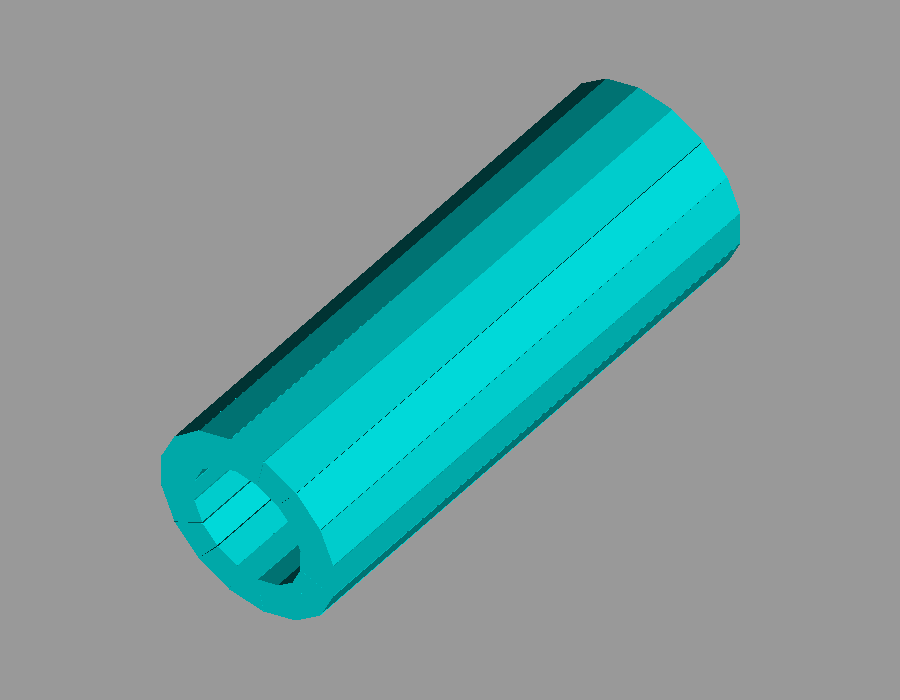

Sixteen cyan trapezoidal scintillator bars arranged around the beam axis. — Scintillator bars
Sixteen long scintillators, with the enclosure hidden.

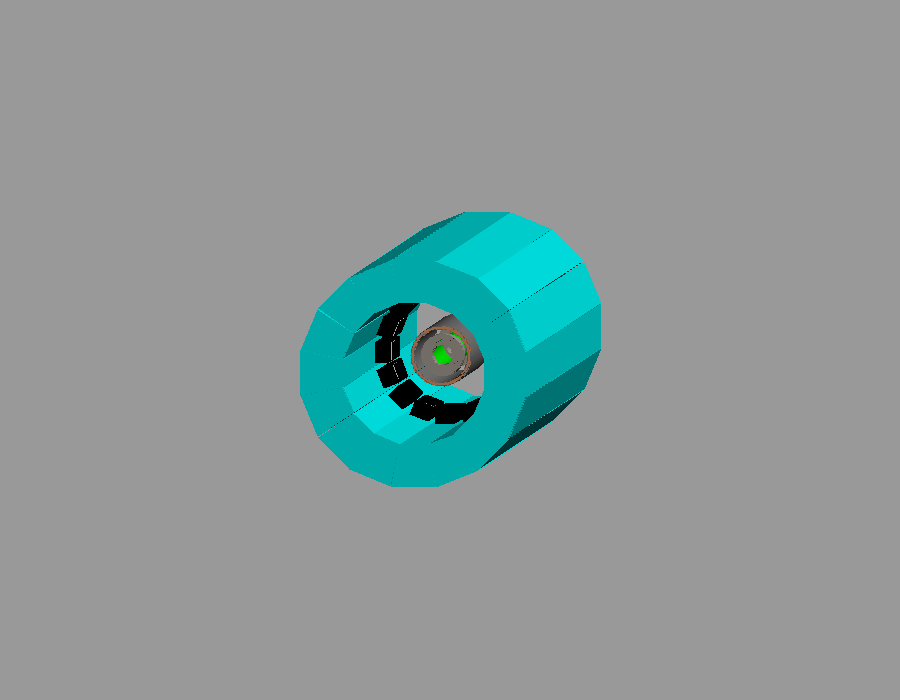

The scintillator barrel viewed nearly along the beam axis. — Along the beam
A view into the scintillator barrel.

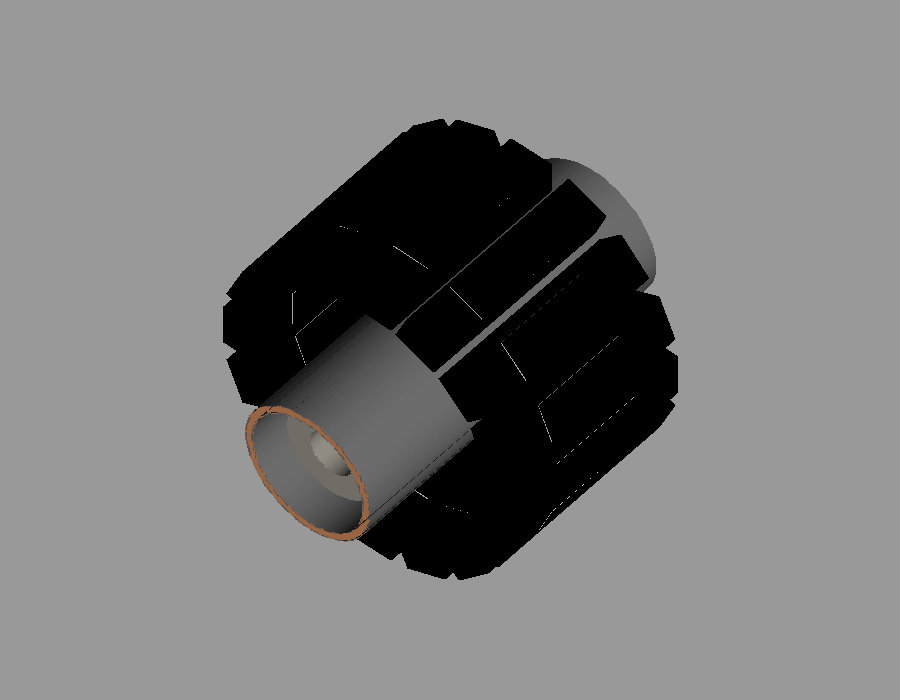

Black PLA housings surrounding the cylindrical chamber and beam assembly. — Inner assembly
ΔE housings around the chamber and beam pipe.

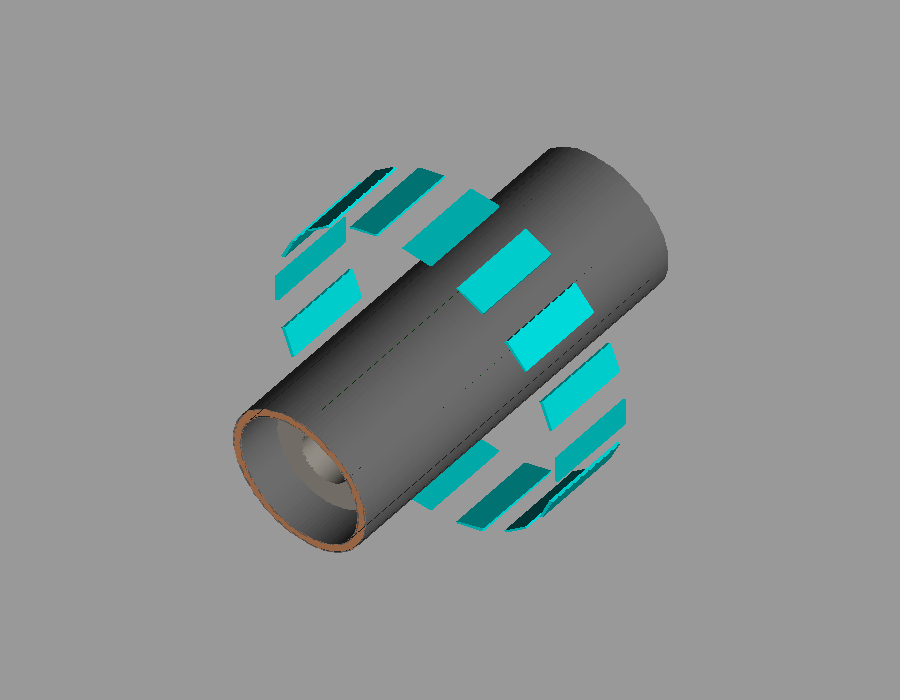

Sixteen cyan thin scintillators surrounding the chamber. — ΔE detectors
Sixteen thin scintillators, with their housings hidden.

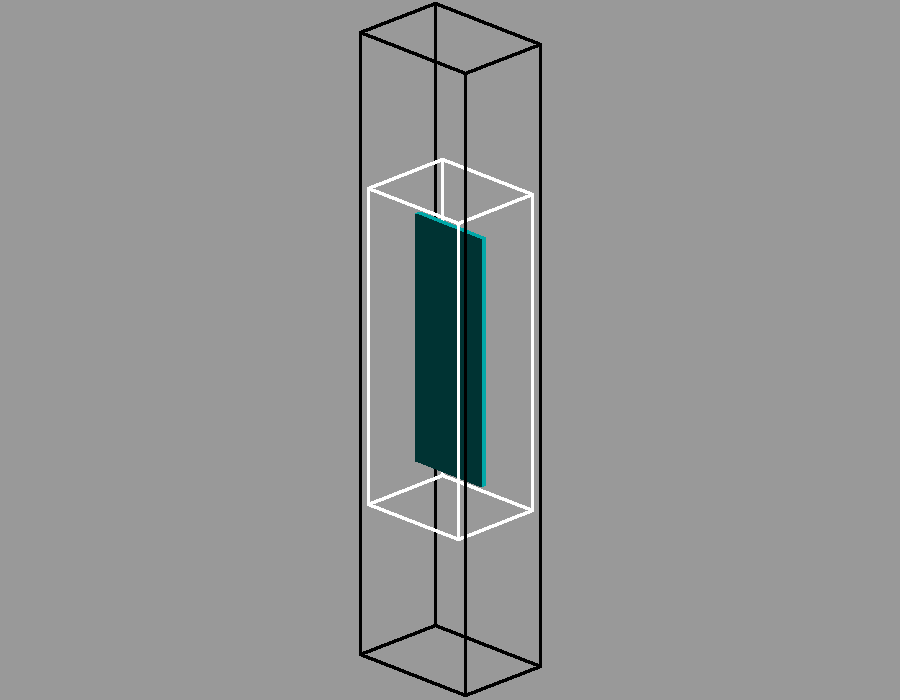

A single housing and its air cavity shown as wireframes around a cyan scintillator. — Inside a housing
Black PLA, white air cavity, cyan scintillator.

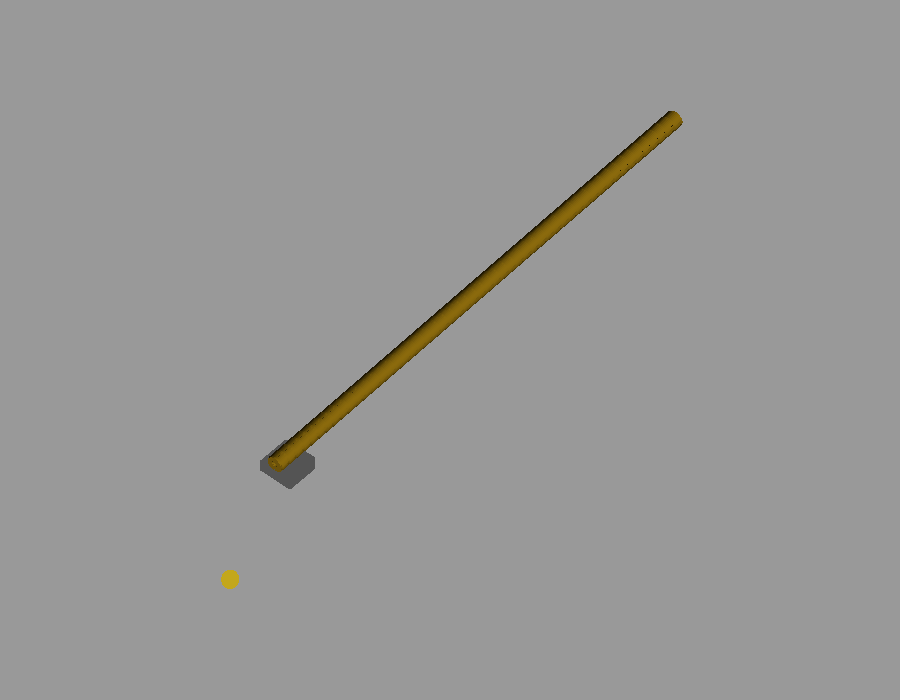

Small LiF target beside its long copper cooling tube and brass nut. — Target & supports
LiF target, hollow copper cooling tube and brass nut.
